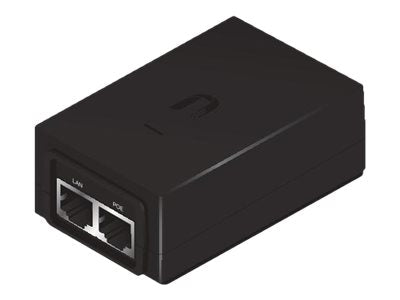

| Model | POE48-24W-G | |
| Dimensions | 92 x 60 x 33 mm (3.62 x 2.36 x 1.30") |
|
| Weight | 158.5 g (5.59 oz) | |
| Output Voltage | 48VDC @ 0.5A | |
| LAN Activity Indicator | No | |
| Gigabit LAN Port | Yes | |
| Remote Reset Capability | No | |
| Reset Button | No | |
| Rated Voltage | 100-240VAC @ 50/60Hz | |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
|
| Inrush Current | <65A Peak @ 120VAC, <130A Peak @ 230VAC |
|
| Efficiency | 80+% | |
| Output Ripple | 1% Max. | |
| Switching Frequency | 65 kHz | |
| Line Regulation | ≤ 3% | |
| Load Regulation | ≤ 5% | |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) | |
| 4-Pair Powering | – | |
| Operating Temperature | 0 to 40° C (32 to 104° F) | |
| Storage Temperature | -30 to 70°C (-22 to 158° F) | |
| Operating Humidity | 35 to 95% Noncondensing | |
| AC Connector | IEC-320 C6 | |
| Data IN / POE | RJ45 Shielded Socket | |
| Surge Protection | Difference and Common Mode | |
| Clamping Protection | 11V Data, 60V Power | |
| Max. Surge Discharge | 1500A (8/20 µs) Power | |
| Peak Pulse Current | 36A (10/1000 µs) Data | |
| Shunt Capacitance | <5 pF data | |
| Response Time | <1 ns | |
| Certifications | CE, FCC, IC, UL | |
