VERTIV

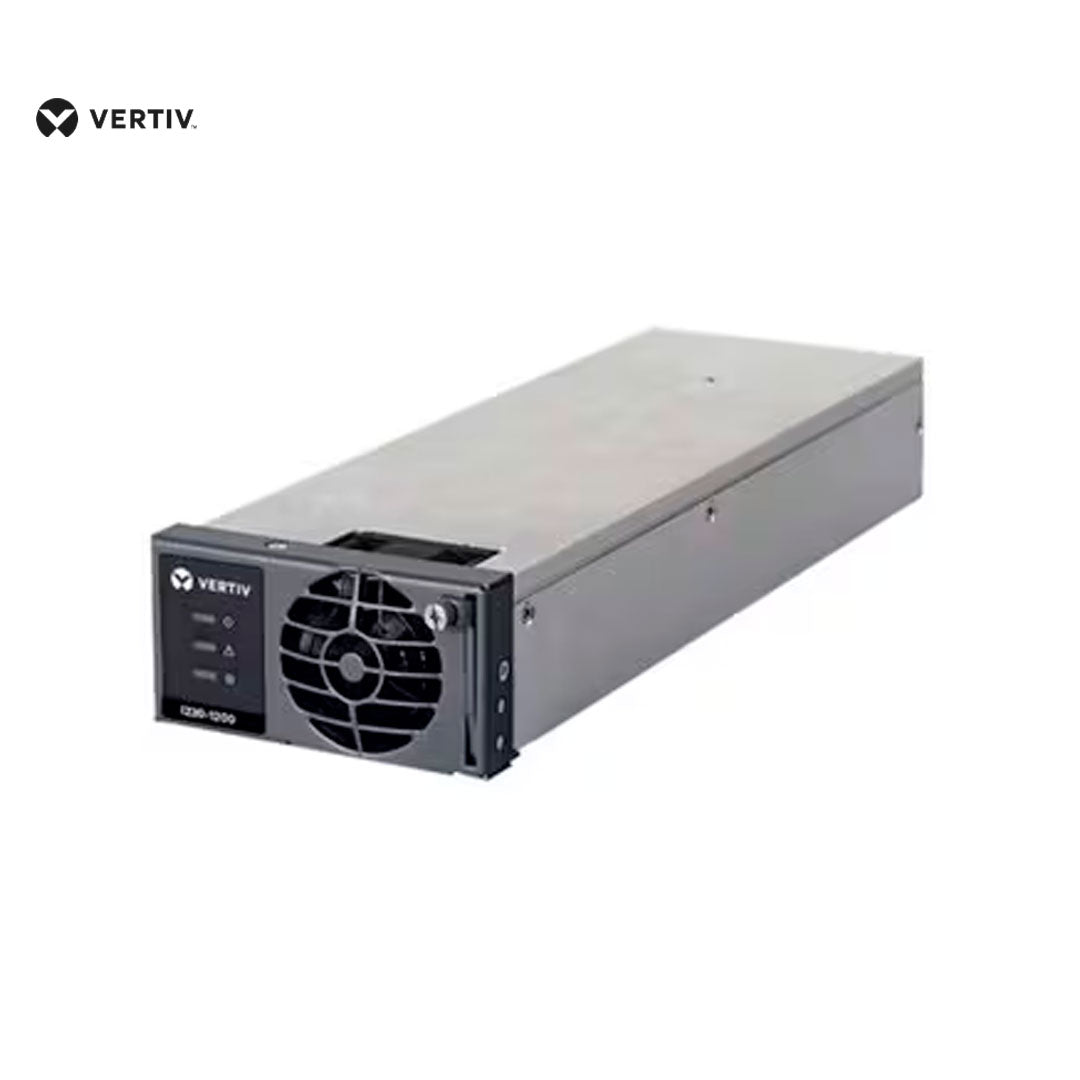

Vertiv Modulo Inversor I230-1200 48Vdc/230Vac/1200W

Agotado
SKU: 02050010
Reservar S/. 1,193.00

Fill in the form below, and we'll get back to you with more information as soon as possible.

Accepted payment methods

    We accept a variety of trusted payment methods.

    Got questions?

    Feel free to get in touch

    ...or just ask an expert!

    Videollamada Chat Correo electrónico +55 555-12345

    Módulo inversor I230-1200 – 48Vdc/230Vac/1200W, diseñado para convertir de manera eficiente corriente continua en corriente alterna, ofreciendo hasta 1200 W de potencia. Ideal para sistemas de respaldo energético, telecomunicaciones y aplicaciones industriales, garantiza suministro estable, confiabilidad y operación continua en entornos exigentes.

    AC Input I230-1200
    Voltage 185 to 275 VAC, 200 to 240 VAC (nominal)
    Frequency 50 Hz or 60 Hz
    Current 6.8 A maximum
    Power Factor > 0.99 @100% load
    Total Harmonic Distortion < 5% @100% load
    DC Input
    Voltage 40 to 58.5 VDC, 48 VDC (nominal)
    Current 27 A @-48 VDC
    AC Output
    Voltage 200 VAC, 208 VAC, 220 VAC, 230 VAC and 240 VAC
    Frequency 50 Hz or 60 Hz
    Maximum Power 1200 W / 1250 VA
    Current Up to 6 A @200 VAC
    Peak Efficiency 96.3% AC/AC, 93.5% DC/AC
    Temperature Derating Full output power up to +45 °C at input voltage range of 200-240 VAC
    Over capacity (fault clearing) 105%-125% @40-48V (15 s), 125%-200% (1 s), >200% (120 ms)
    Total Harmonic Distortion < 3% @100% load
    Control and Monitoring
    Inverter Alarm and Signaling Alarm and status reported via CAN bus to system controller
    Visual Indications
    Green LED: Normal Operation
    Yellow LED: Alarm
    Red LED: Failure
    Environmental
    Operating -20 to 80 °C, -4 to +176 °F (see figure for derating)
    Storage -40 to 70 °C, -40 to +158 °F
    Relative Humidity 0 to 95%
    Altitude 3000 m, 10000 ft. (2000 m, 6562 ft. at full power)
    Standards Compliance
    Safety EN/IEC 62040; CE
    EMC IEC/EN 62040-2, GR-1089-CORE, FCC Part 15 Subpart B,
    Class A (B radiation, A conductive)
    Mechanics
    Dimensions (H x W x D) 41 x 84.5 x 252.5 mm / 1.6 x 3.3 x 10.0 inches
    Weight 1.3 kg / 2.86 lbs
    Ordering Information
    Part Number Description
    I230-1200 eSure inverter, 230 VAC, 1200 W
