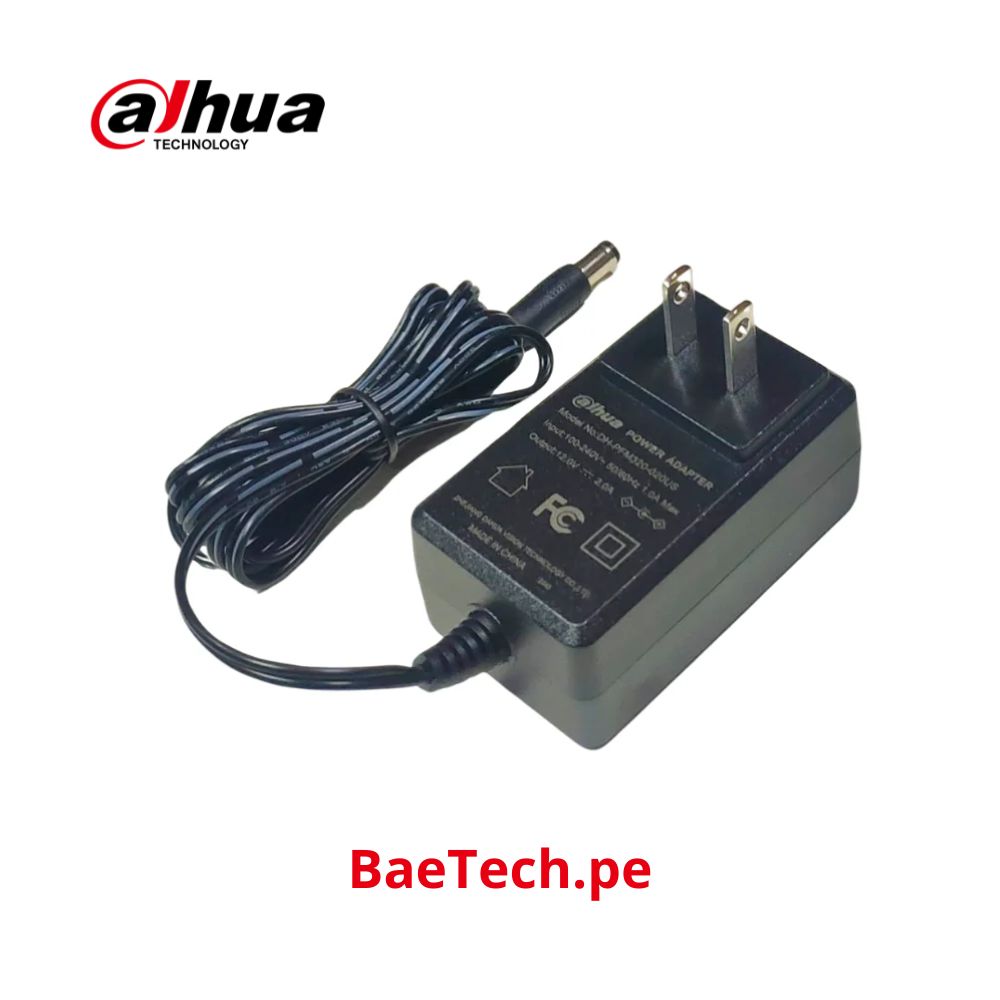

fuente de poder 12 V 2A Dahua DH-PFM320-020US

Electrical Specification

Input Voltage Range

100Vac-240Vac

Efficiency

≥82.09%

Output Voltage

DC12V

Rated Output Current

2A

Output Power

24W

No Load Power Consumption

≤0.3W

Protection/Environmental

Surge Protected

Line to ground: ±4KV

Line to line: ±2KV

ESD

Contact discharge: ±6KV

Air discharge: ±8KV

Protective Function

Over voltage protection, over current protection, short circuit protection, input protection

Working Temperature

0°C ~ + 40°C(32 °F ~ + 104 °F)

Working Humidity

10%~90%(RH)

Storage Temperature

- 40°C ~ + 80°C( - 40 °F ~ + 176 °F)

Storage Humidity

5%~95%(RH)

Physical Properties

Installation

Wall-mount

Net Weight

0.093kg(0.20lb)

Gross Weight

0.108kg(0.24lb)

Dimension

70.0 mm × 40.0 mm × 27.5 mm (2.76"

×1.57" ×1.08") (L × W × H)

Package Dimension

60.0 mm × 90.0 mm × 45.0 mm (2.36"

×3.54" ×1.77") (L × W × H)

Color

Black

Input Plug

2-pin North American plug

Output Cable Length

1500 mm

Output Plug

Φ5.5 mm × Φ2.1 mm × 10 mm (Φ0.22" ×

Φ0.08" × 0.39")

Safety Standards

Certification

FCC
