DAHUA

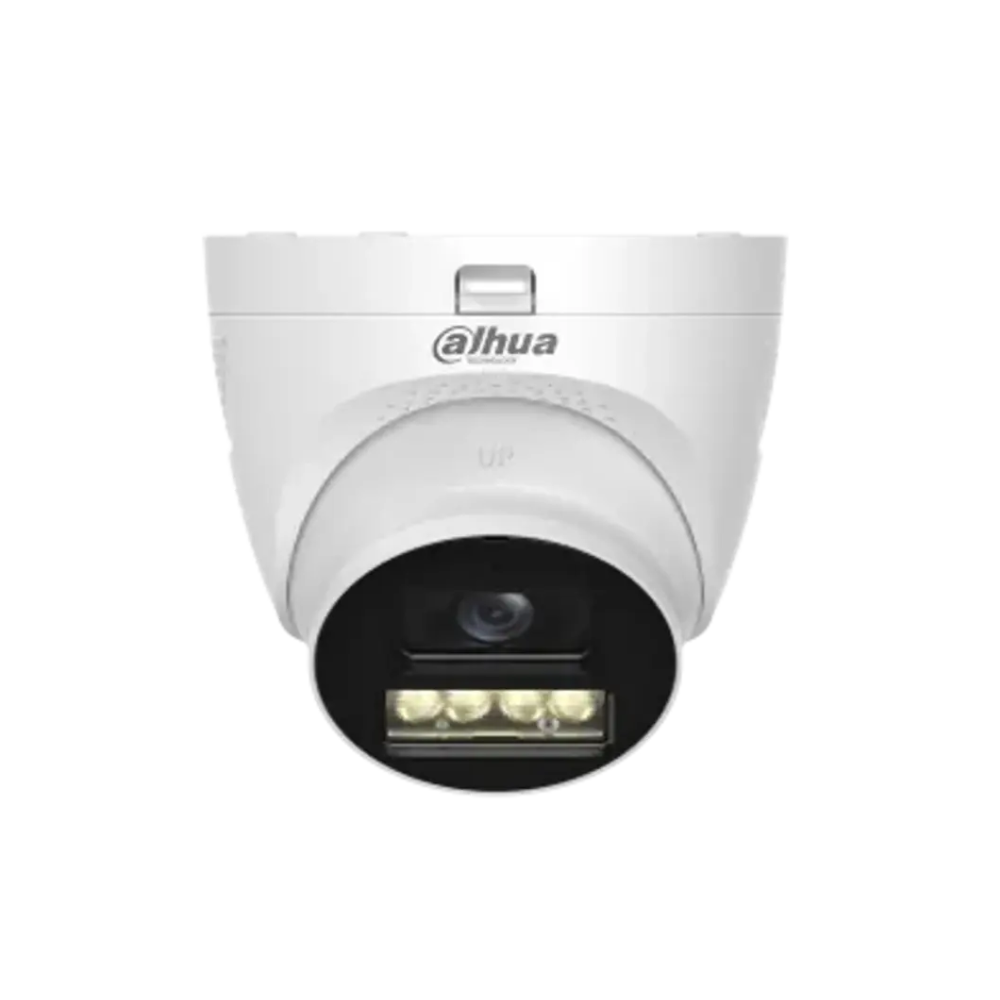

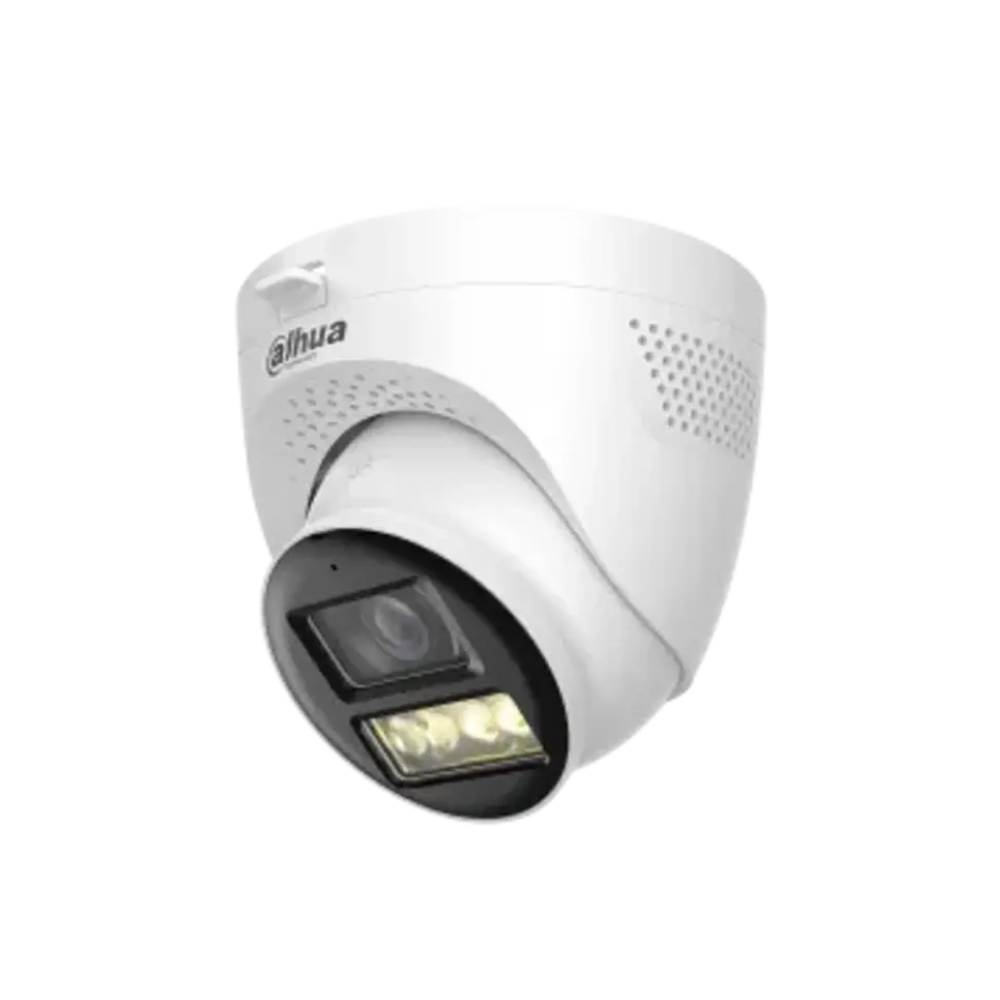

DAHUA DH-HAC-HDW1500TQN-IL-T CAMARA HDCVI DOMO EYEBALL 5 MP - SMART DUAL LIGHT 40 M - AUDIO BIDIRECCIONAL - 4EN1 - IP67

En existencia
SKU: DH-HAC-HDW1500TQN-IL-T
S/. 155.00
Envío rápido y seguro
Pagos 100% seguros
Calidad garantizada
Video
Video Frame Rate CVI: PAL: 5M@25 fps; 5M@12.5 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 5M@20 fps; 5M@10 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 5M 16:9@20 fps NTSC: 5M 16:9@20 fps CVBS: PAL: 960H NTSC: 960H
Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 720p (1280 × 720); TVI 5M 16:9 (2960 × 1665)
Day/Night Auto(ICR)/Color/B/W
BLC BLC; HLC; WDR
WDR DWDR
White Balance Auto; Area white balance
Gain Control Auto/Manual
Noise Reduction 3D NR
Illumination Mode Smart IR&WL (CVI, TVI); WL Mode; IR Mode
Mirror Yes
Privacy Masking Off/On (8 areas, rectangle)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity <95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity <95% (RH), non-condensing
Protection IP67
Anti-corrosion Level Basic Protection *The products are designed for general use and are applicable even in areas with no specific requirements for anti-corrosion protection.
Lens
Lens Type Fixed-focal
Auto Focus No
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F1.6
Field of View H: 113.3°; V: 62.1°; D: 134.3°
Iris Control Fixed
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance D: 59.8 m; O: 23.9 m; R: 12.0 m; I: 6.0 m (D: 196.19 ft; O: 78.41 ft; R: 39.37 ft; I: 19.69 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Camera
Pixel 5 MP
Appearance Eyeball
Image Sensor 1/2.7" CMOS
Max. Resolution 2880 (H) × 1620 (V)
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
Min. Illumination 0.01 lux@F1.6 (Color, 30 IRE) 0.001 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio >65 dB
Illumination Distance IR: 40 m (131.23 ft) Warm light: 40 m (131.23 ft)
Illuminator On/Off Control Auto; Manual
Illuminator Number 4 (Multi-core light)
Angle Adjustment Pan: 0°–360° Tilt: 0°–75° Rotation: 0°–360°
SD/HD Switch DIP switch
Audio
Built-in Mic Yes
Camera Audio CVI; TVI
Pick-up Distance 8 m (26.25 ft)
Two-way Talk Yes (CVI, TVI)
Speaker Yes
Speaker Distance 8 m (26.25 ft)
Structure
Casing Material Dome (metal + plastic) + plastic enclosure
Product Dimensions Φ109.9 mm × 105.9 mm (Φ4.33" × 4.17")
Net Weight 0.50 kg (1.1 lb)
Gross Weight 0.64 kg (1.41 lb)
Installation Wall mount; ceiling mount; vertical pole mount
Certification
Certifications CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035;
Power
Power Supply 12 VDC (±30%) (It is recommended to use a power adapter to supply the power for one camera)
Power Consumption Max 9.5 W (12 VDC, WLED on)
