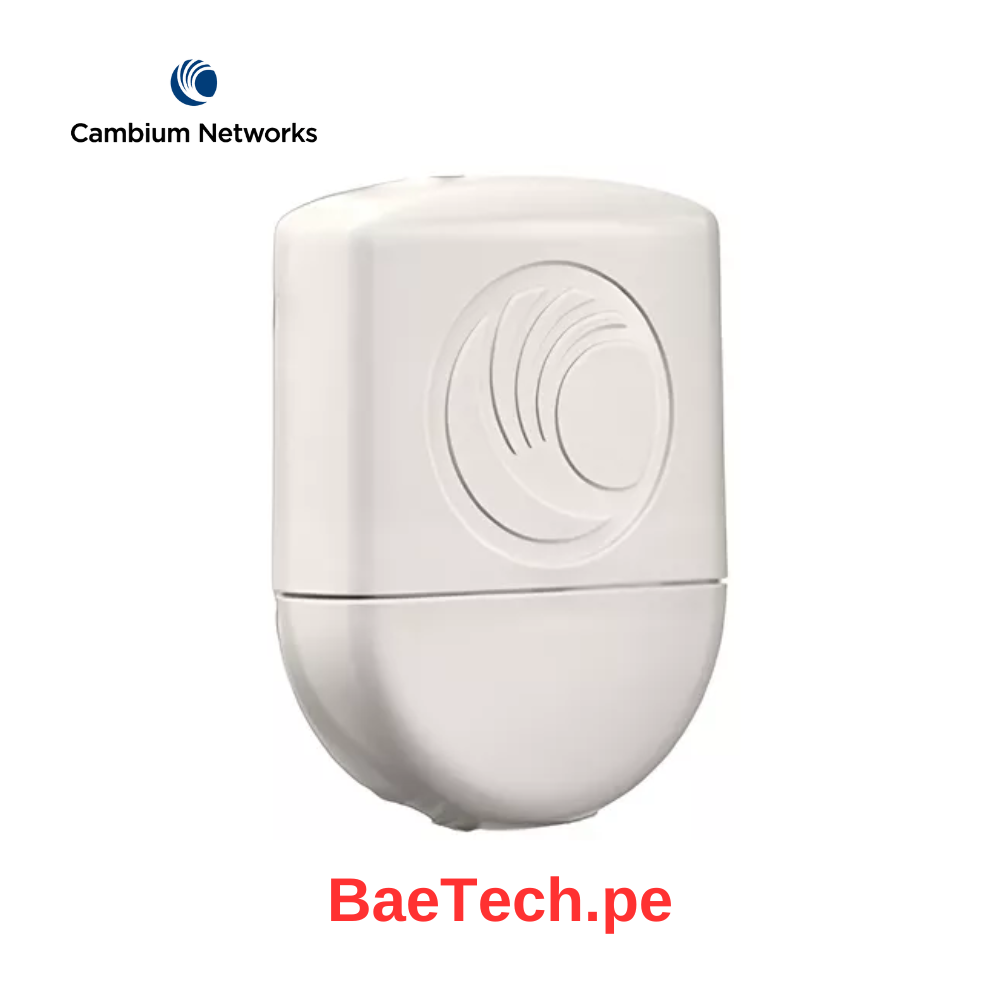

CAMBIUM C000000L033A - SUPRESOR DE SOBRETENSIONES GIGABIT (56 V), BASE 10/100/1000

Specifications and Features
Model Number C000000L033A
Transfer Rate 1000 Base T
Connectors Two RJ-45 cables.
Note: All RJ45 Ethernet LAN cables used for providing power or are connected to power ports (PoE) must be UL certified with VW-1 markings. All cables used for outdoor installations must be suitable to be used for that environment and rated accordingly.
Nominal Voltage 56 V
Protection Mode Line-to-line and line-to-ground
Surge Arrestor TVS Diodes (Transient Voltage Suppression for longer operational life)
Surge Current Rating, L-G , Total 172A, 10/1000us
Response Time 5 nanoseconds typical

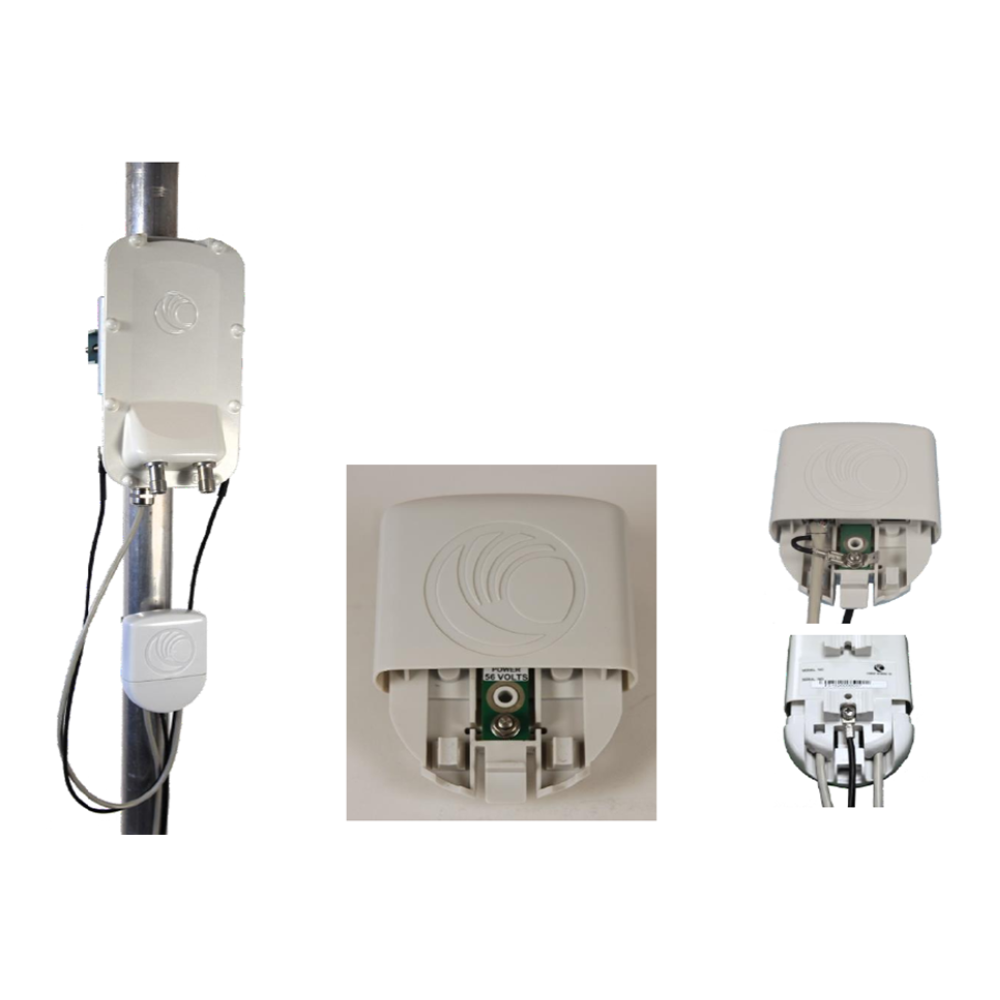

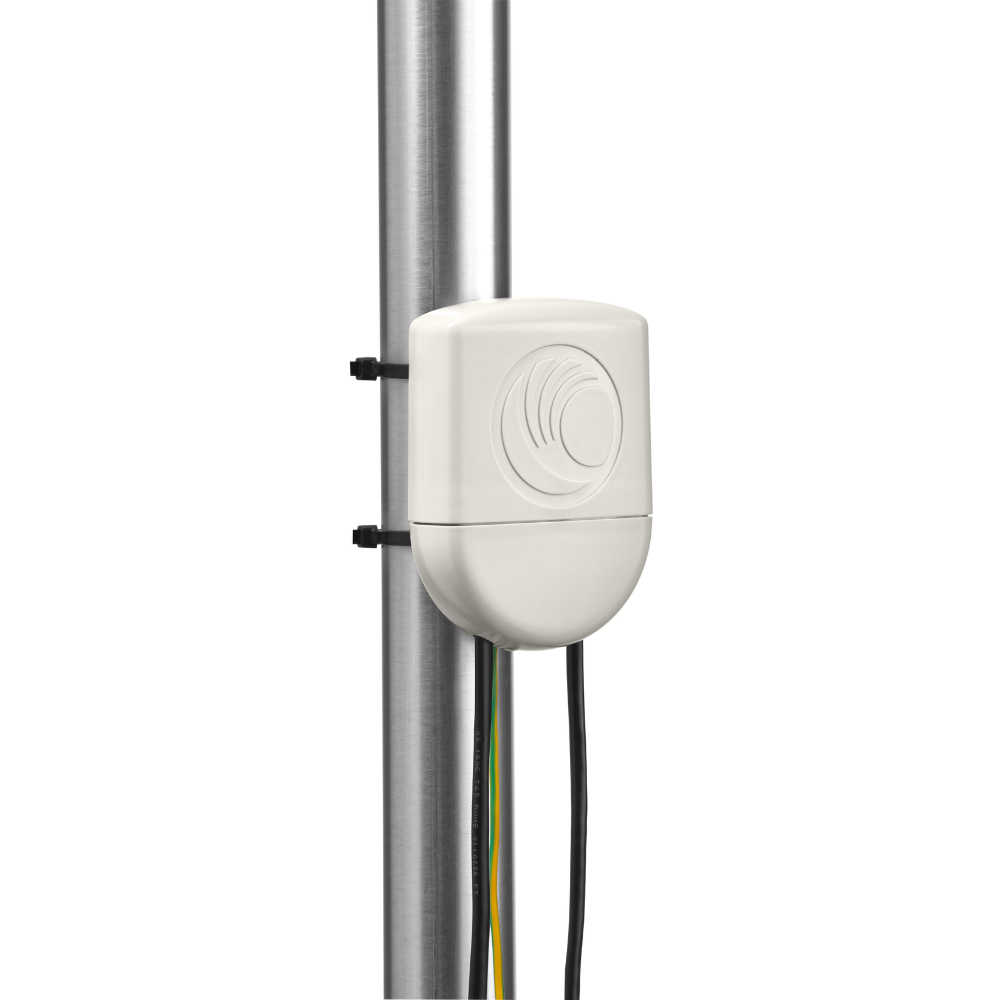

Mounting Pole mount or wall mount
Dimensions 118 x 87.5 x 46.5 mm (4.6 x 3.4 x 1.8 in)
Weight 156 g (0.34 lbs)
Wind Survival 321 kph (200 mph)
Operating Temperature -40ºC to 60ºC (-40ºF to 140ºF)
Humidity 100% Condensing
Environmental Protection IP54 - Note: This product meets the UL/cUL 62368 / IEC 62368 edition 2 specification. The radio
housings are designed to be raintight.
